5.7 - Moments - The Turning Effect

11 min

What a moment is

Calculating a moment

Clockwise and anticlockwise moments

Balancing a seesaw

note 1 of 7

A moment is the turning effect of a force

When a force acts on an object that can turn about a fixed point (the pivot), it produces a turning effect called the moment of the force.
Everyday examples include pushing a door open, loosening a nut with a spanner, and using a wheelbarrow.

Formula for the moment of a force

$M = F d$

Where:

$M$ = Moment of the force, in newton metres (Nm)
$F$ = Force, in newtons (N)
$d$ = Perpendicular distance from the pivot to the line of action of the force, in metres (m)

A spanner gripping a nut labelled pivot, with a downward arrow labelled force at the end of the handle and a double arrow labelled perpendicular distance between the force and the pivot.

What changes the size of a moment

Larger force - Increases the moment.
Greater distance from the pivot - Increases the moment.
Angle of the force - Applying the force at right angles (90°) gives the largest moment. Any other angle reduces the perpendicular distance to the pivot.

Moments have a direction

A moment turns an object either clockwise or anticlockwise, depending on the direction of the force and which side of the pivot it acts on.

note 2 of 7

Worked example - Moment of a force on a nut

A spanner is used to undo a tight nut. A force of 50 N is applied to the spanner at a perpendicular distance of 0.3 m from the nut, which acts as the pivot. What is the moment of the force on the nut?

A spanner gripping a hexagonal nut, with a blue arrow pointing down from the end of the handle labelled 50 N and the distance to the nut marked 0.3 m.

Step 1 - Write down the values

Force, $F = 50$ N
Perpendicular distance, $d = 0.3$ m

Step 2 - Formula

$M = F d$

Step 3 - Substitution and calculation

$M = 50 \times 0.3 = 15 Nm$

The moment of the force on the nut is 15 Nm.

note 3 of 7

The principle of moments

An object that can turn about a pivot is balanced (in rotational equilibrium) when the turning effects on each side cancel out.
Principle of moments - When an object is balanced:

Total clockwise moment = total anticlockwise moment

If the clockwise and anticlockwise moments are not equal, there's a resultant moment and the object turns.

A beam balanced on a triangular pivot, with a 450 N weight 1 m to the left of the pivot and a 300 N weight 1.5 m to the right.

note 4 of 7

Worked example - Tension in a supporting rope

A uniform wooden beam 10 m long and weighing 1,600 N rests horizontally on a support 2 m from one end. A rope is attached vertically to the other end and holds the beam so that it balances. What is the tension in the rope?

The support acts as the pivot. The weight acts downwards at the centre of mass (the middle of the beam); the rope tension acts upwards at the far end.

A wooden beam on a pivot 2 m from its left end, with a 1,600 N arrow down at its centre and a rope at the right end pulling up with an unknown tension, the spans marked 2 m, 8 m and 10 m.

Step 1 - Find the perpendicular distances from the pivot

Centre of mass is at the middle of the 10 m beam - 5 m from each end. The pivot is 2 m from one end, so the weight acts 5 - 2 = 3 m from the pivot.
The rope is at the far end, 10 - 2 = 8 m from the pivot.

Step 2 - Apply the principle of moments

$W \times d_{W} = T \times d_{T}$

$1,600 \times 3 = T \times 8$

Step 3 - Rearrange and solve for T

$T = \frac{1,600 \times 3}{8} = 600 N$

The tension in the rope is 600 N.

note 5 of 7

Investigating the principle of moments

The principle of moments can be tested using a metre ruler, a pivot, and several known masses.
A 100 g mass has a weight of approximately 1 N ( $W = m g$ ).

Method

Balance the metre ruler at its centre (the 50 cm mark) on a pivot.
Hang a known mass on one side of the pivot and measure its distance from the pivot, $d_{1}$ .
Hang a different mass on the other side and adjust its position until the ruler balances, then measure its distance from the pivot, $d_{2}$ .
Calculate the anticlockwise moment ( $F_{1} \times d_{1}$ ) and the clockwise moment ( $F_{2} \times d_{2}$ ).
Repeat with different masses and distances.

Result

For each balanced set-up, the anticlockwise moment equals the clockwise moment (within experimental error), confirming the principle of moments.

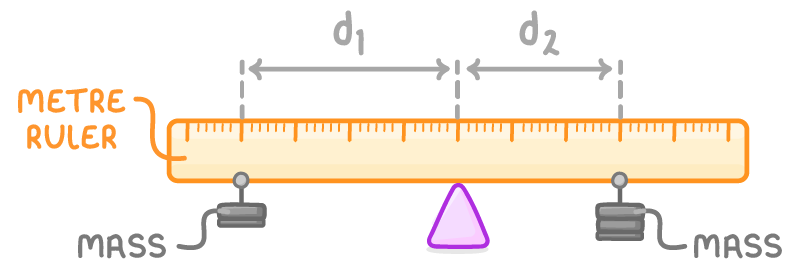

A metre ruler balanced on a triangular pivot at its centre with a stack of masses hanging either side, each labelled mass, and the distances from the pivot marked d1 and d2.

note 6 of 7

Worked example - Reaction forces on a beam

A light beam 8.0 m long rests on two supports, A and B, one at each end. A load of 1,200 N hangs from the beam 5.0 m from support A (3.0 m from support B). Find the upward force from support A ( $R_{A}$ ) and from support B ( $R_{B}$ ). (The beam is light, so its own weight is ignored.)

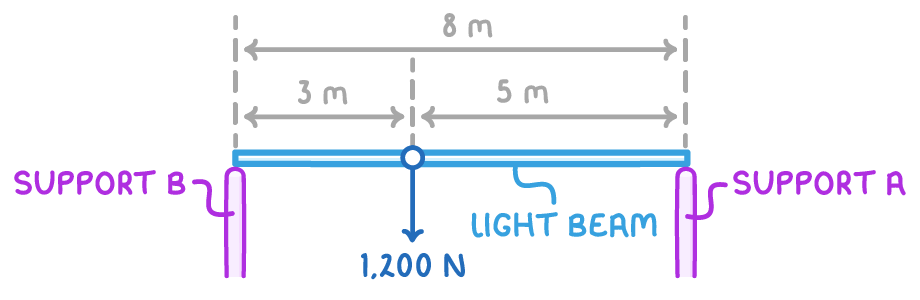

A horizontal bar labelled light beam resting on two supports from below, the left labelled support B and the right support A, with a 1,200 N arrow pointing down between them, 3 m from B and 5 m from A.

Step 1 - Take support B as the pivot and apply the principle of moments

Taking moments about B removes $R_{B}$ because its distance from B is zero:

$R_{A} \times 8.0 = 1,200 \times 3.0$

Step 2 - Solve for R_A

$R_{A} = \frac{1,200 \times 3.0}{8.0} = 450 N$

Step 3 - Use the balance of vertical forces to find R_B

The upward forces must balance the downward load:

$R_{A} + R_{B} = 1,200$

$R_{B} = 1,200 - 450 = 750 N$

Support A pushes up with 450 N and support B with 750 N.

note 7 of 7

The two conditions for equilibrium

For an object to be in equilibrium, two conditions must both be met:

No resultant force - The forces acting on the object balance in all directions, so there is no change in linear motion.
No resultant moment - The total clockwise moment about any pivot equals the total anticlockwise moment, so the object does not rotate. A uniform beam balanced on a pivot at its centre of gravity, shown below, meets both conditions.

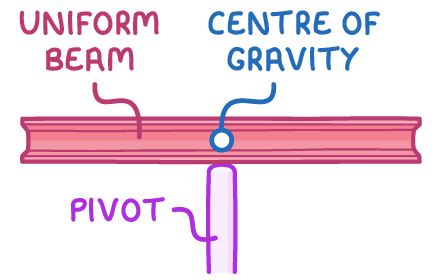

A pink beam labelled uniform beam rests on a pale purple pivot, with a small blue circle on top of the beam directly above the pivot labelled centre of gravity.

key terms

TermDefinition

MomentThe turning effect of a force, equal to the force multiplied by the perpendicular distance from the pivot to the line of the force.

PivotThe fixed point that an object turns about.

Principle of momentsWhen an object is balanced, the total clockwise moment about a pivot equals the total anticlockwise moment.

EquilibriumThe state of an object when the forces acting on it are balanced, so the resultant force is zero. For an object that can turn, the moments must also balance, so there is no resultant moment.
