Defining the production possibilities curve

The production possibilities curve (PPC) is a graphical model that shows the maximum combinations of two goods or services that an economy can produce when all resources are fully and efficiently used. This model assumes a simplified economy producing only two items, helping to illustrate fundamental economic principles.

Key terms related to the PPC

• Scarcity - The limited availability of resources, which forces choices about what to produce since not everything can be made in unlimited quantities.
• Tradeoffs - The decisions economies make when choosing to produce more of one good, which requires producing less of another due to limited resources.
• Opportunity cost - The value of the next best alternative given up when making a choice, such as the amount of one good sacrificed to produce more of another.
• Efficiency - A state where resources are fully utilized to produce the maximum possible output, represented by points on the PPC.
• Full employment - The condition where all available resources (like labor and capital) are being used productively, aligning with points on the PPC.

The PPC demonstrates full employment output by showing the boundary of what's achievable when resources are fully allocated.

How the PPC illustrates key economic concepts

The PPC serves as a visual tool to explain several core ideas in economics, highlighting the constraints and possibilities within an economy.

Concepts shown on the PPC

• Scarcity and tradeoffs - The curve's downward slope indicates that increasing production of one good requires decreasing another, reflecting limited resources and the need for choices.
• Opportunity cost - Moving along the curve from one point to another shows the opportunity cost, as producing more of one item means forgoing some of the other.
• Efficiency - Points directly on the curve represent efficient production, where no resources are wasted and output is maximized for the given inputs.
• Inefficiency (underutilized resources) - Points inside the curve indicate inefficiency, where resources are not fully used, leading to lower output than possible; this could result from unemployment or idle factories.
• Unattainable points - Points outside the curve are impossible with current resources and technology, emphasizing scarcity.
• Economic growth or contraction - Growth expands the economy's capacity, while contraction reduces it, affecting the position of the curve.

For example, if an economy is at a point inside the PPC, it can increase production of both goods by moving toward the curve, without any tradeoffs, by better utilizing resources.

The shape of the PPC and opportunity costs

The PPC's shape reveals important information about the nature of opportunity costs in production. Opportunity costs can vary, influencing whether the curve is straight or bowed.

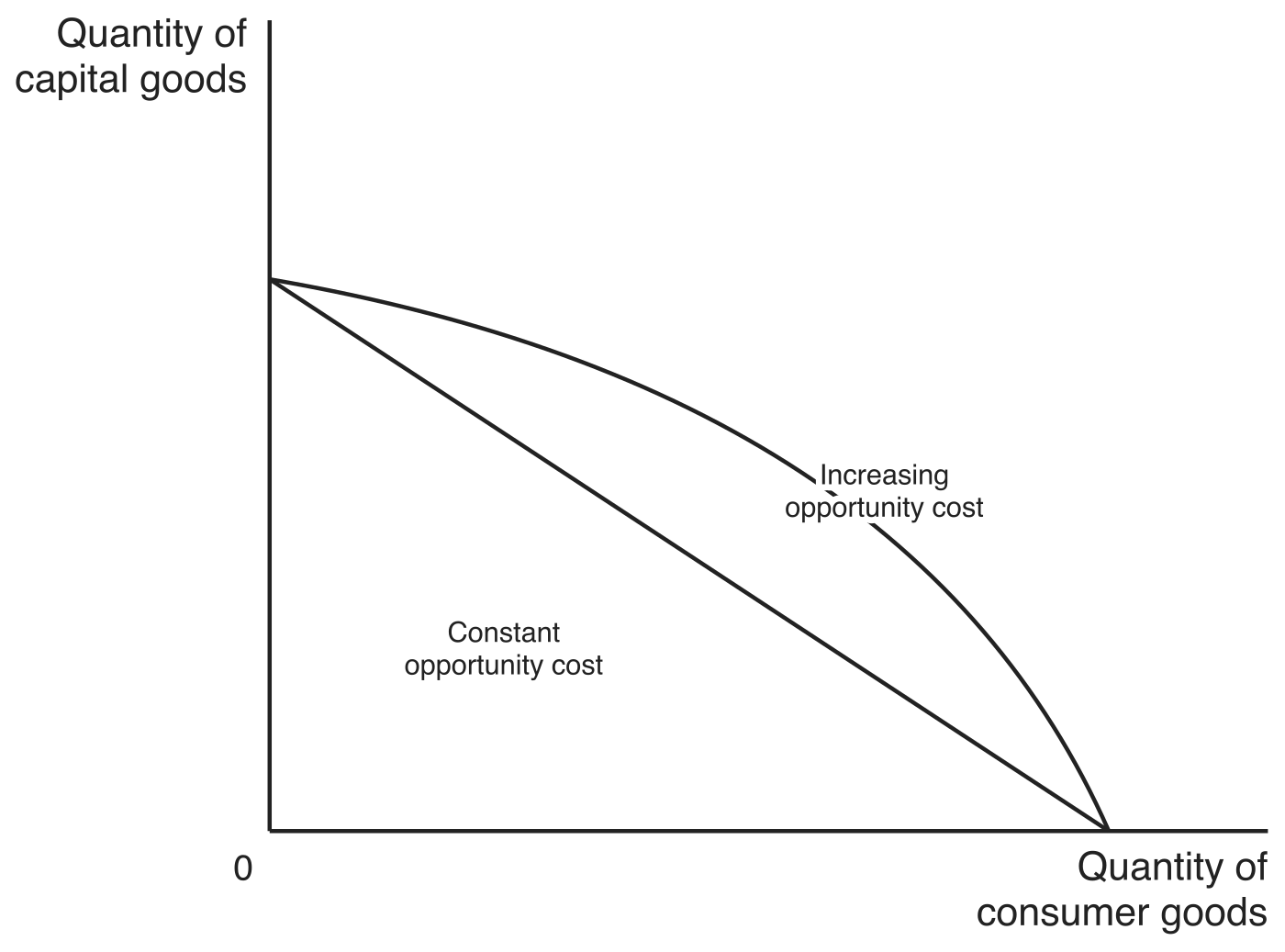

Types of opportunity costs and their impact on PPC shape

• Constant opportunity costs - Occur when the cost of producing more of one good remains the same, regardless of how much is already being produced; this results in a straight-line PPC, as resources are equally suited for both goods.
• Increasing opportunity costs - Happen when producing additional units of one good requires giving up progressively larger amounts of the other; this creates a concave (bowed-out) PPC, common when resources are specialized and not easily transferable between goods.
• Decreasing opportunity costs - Rare, but would mean giving up progressively smaller amounts of one good to produce more of another; this leads to a convex (bowed-in) PPC, though it's less typical in real economies.

The shape depends on resource allocation efficiency—as production shifts, if opportunity costs increase, the curve bows outward, reflecting real-world scenarios where specialization matters.

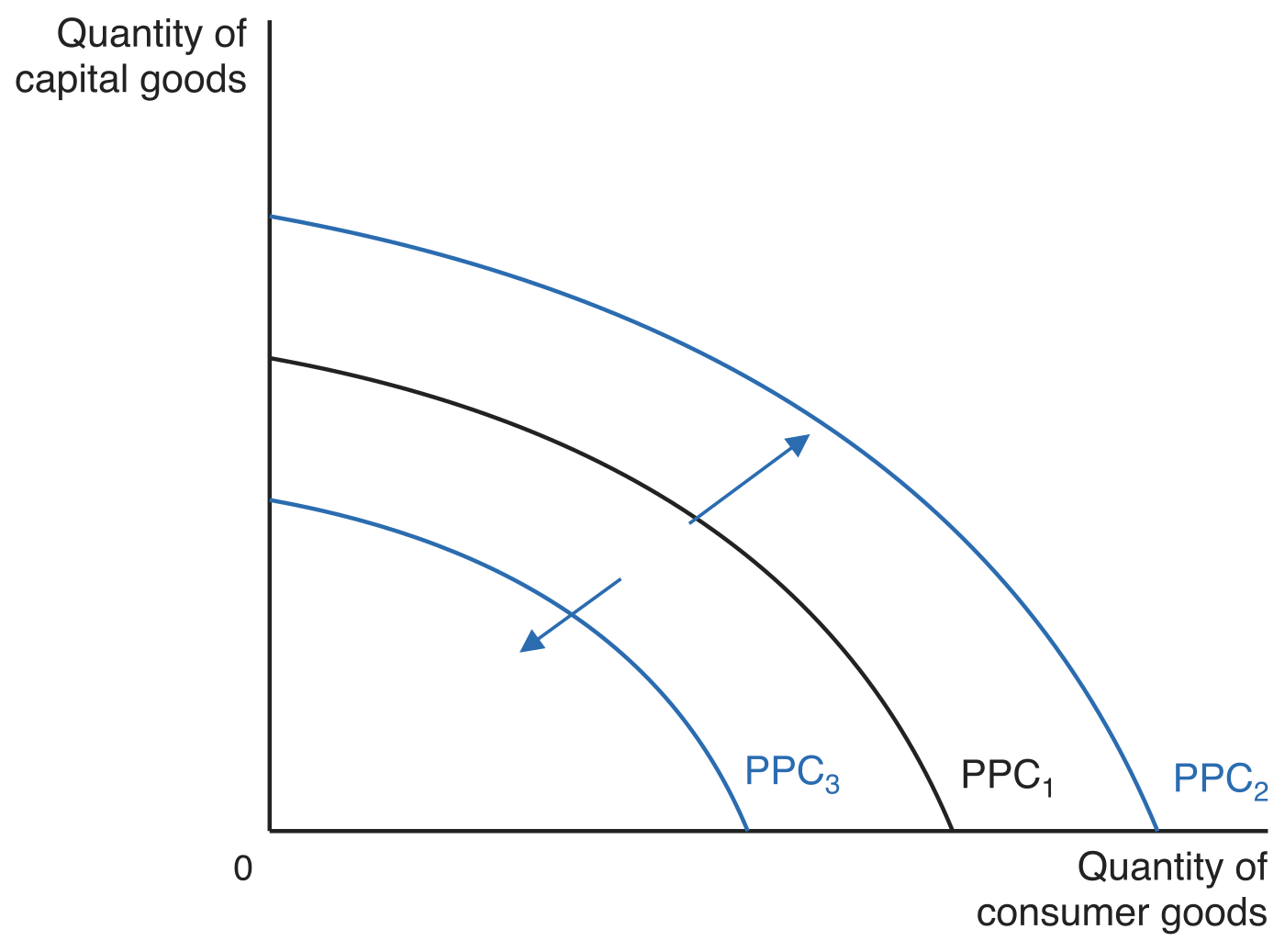

Factors causing shifts in the PPC

The PPC can move, representing changes in an economy's productive capacity. These shifts illustrate broader economic changes.

Outward shifts (economic growth)

The entire curve moves rightward, indicating the economy can produce more of both goods.

Causes of outward shifts:

• Increases in factors of production (like more labor or capital)
• Improvements in productivity/technology, such as better machinery or education

Inward shifts (economic contraction)

The curve moves leftward, showing reduced capacity to produce goods.

Causes of inward shifts:

• Decreases in factors of production (e.g., natural disasters destroying resources)
• Declines in productivity/technology

Shifts affect full employment levels— an outward shift raises the maximum output at full employment, while an inward shift lowers it.

Calculating opportunity cost from PPC data

Opportunity cost can be quantified using data from a PPC, such as points on a table showing production combinations. This calculation helps measure the tradeoffs involved in shifting production.

Formula for opportunity cost

$\text{Opportunity cost of good A}=\frac{\text{change in quantity of good B}}{\text{change in quantity of good A}}$

Where:

• Change in quantity of good B = Amount of good B given up
• Change in quantity of good A = Amount of good A gained

This formula expresses opportunity cost in terms of units of one good sacrificed per unit of the other gained.

Worked example - Calculating opportunity cost

An economy can produce combinations of computers and bicycles as shown in the table below. Calculate the opportunity cost of increasing computer production from 200 to 300 units.

Step 1: Identify the values

• Change in computers = 300 - 200 = 100 units gained
• Change in bicycles = 600 - 800 = -200 units given up

Step 2: Apply the opportunity cost formula

$\text{Opportunity cost of computers (in bicycles)}=\frac{-200}{100}$

Step 3: Calculate the opportunity cost

Opportunity cost = 2 bicycles per computer

Step 4: Interpretation

To produce 100 more computers, the economy must give up 200 bicycles, meaning each additional computer costs 2 bicycles in forgone production.
